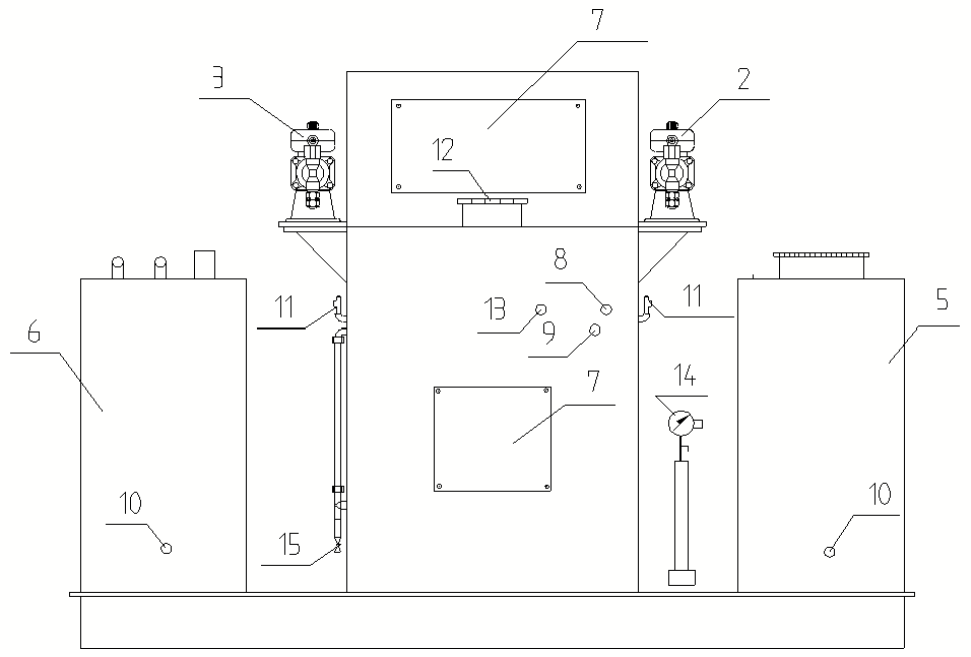

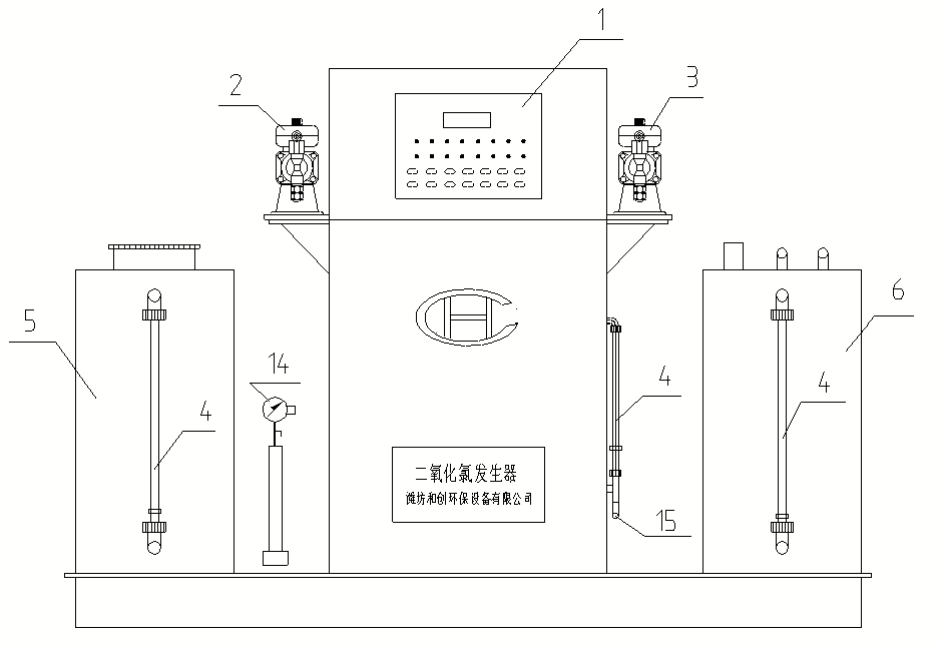

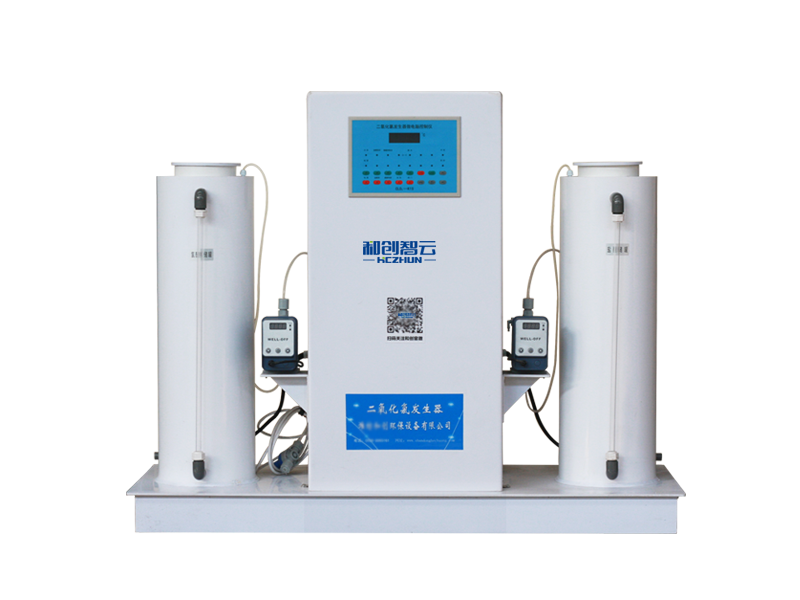

Description of equipment components:
1. The chlorine dioxide controller controls the start and stop of each component of the equipment and equipment fault
display
2. The sodium chlorate metering pump quantitatively injects the raw sodium chlorate solution into the equipment reactor
3. The hydrochloric acid metering pump quantitatively pumps the raw hydrochloric acid into the equipment reactor
4. The liquid level switch detects the liquid level of raw materials and provides alarm signal for material shortage
5. Sodium chlorate raw material tank is used to store the aqueous solution of sodium chlorate, and the consumption of
sodium chlorate is measured macroscopically
6. The hydrochloric acid raw material tank is used to store hydrochloric acid, and the consumption of hydrochloric acid
is measured macroscopically
7. Open the manhole for maintenance in case of equipment failure
8. When the equipment is operating, the outdoor air enters the equipment through the air inlet, so
The pressure in the reactor can be discharged to the outdoor through this opening.
9. The Available Chlorine produced by the outlet equipment is sucked out by the ejector and sent to the
Dosing point
10. Discharge the raw materials from the drain outlet
11. Reactor relief protection in case of sudden shutdown of back pressure valve
12. The water inlet adds water to the equipment water bath
13. Safety valve prevents liquid medicine from siphoning
14. The pressure gauge displays the dynamic water pressure
15. Drain the water bath when the outfall equipment is out of service for a long time or not used in winter (antifreeze)
